Technical drawings

Pos. Catalog number Order's no. Indication in leaflet Item
1. K003/1 18500700 A1 Dosing unit standard
2. A4 Dosing unit 125
3. K007/A 18502100 A2 Dosing unit 530

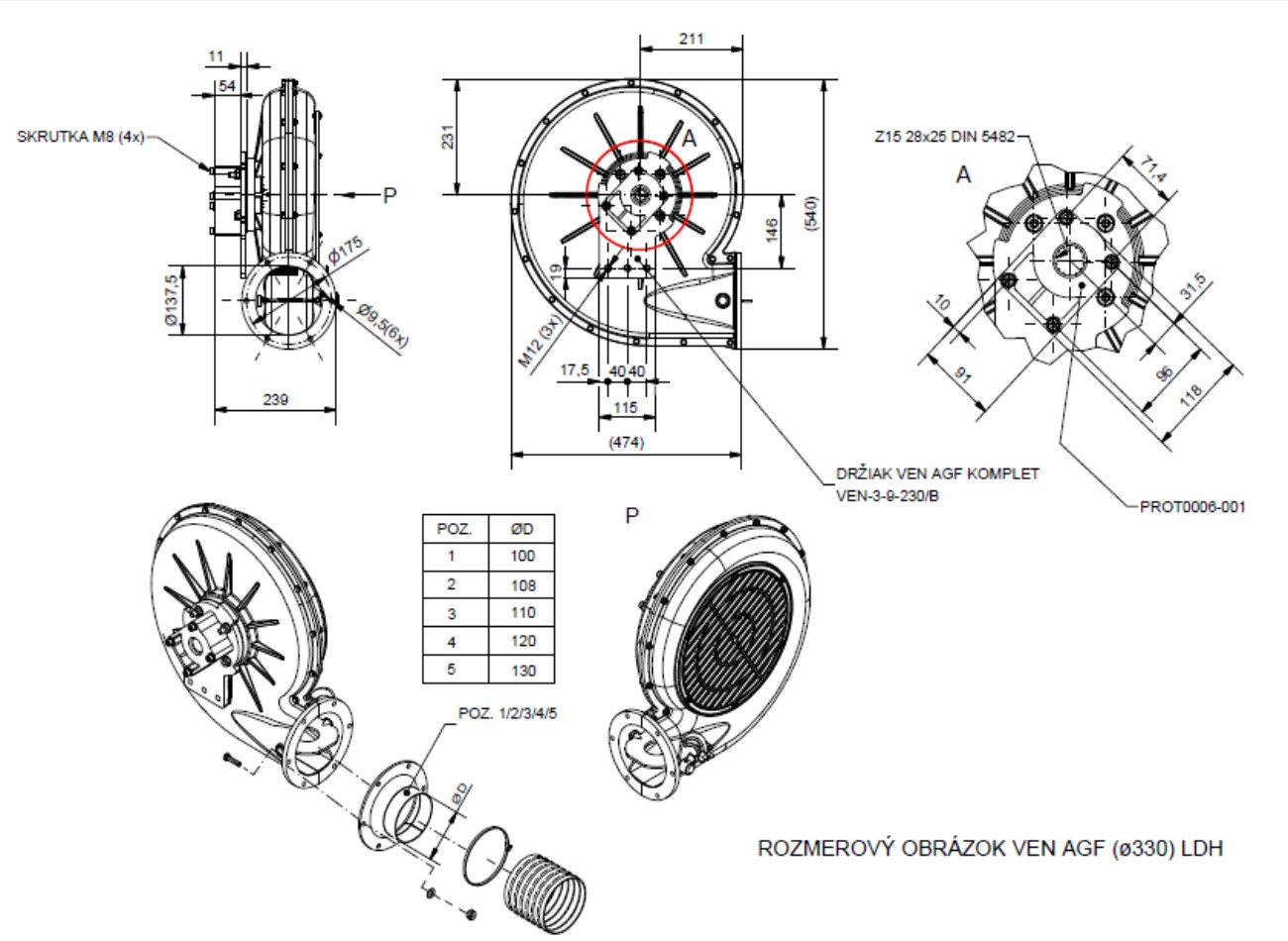

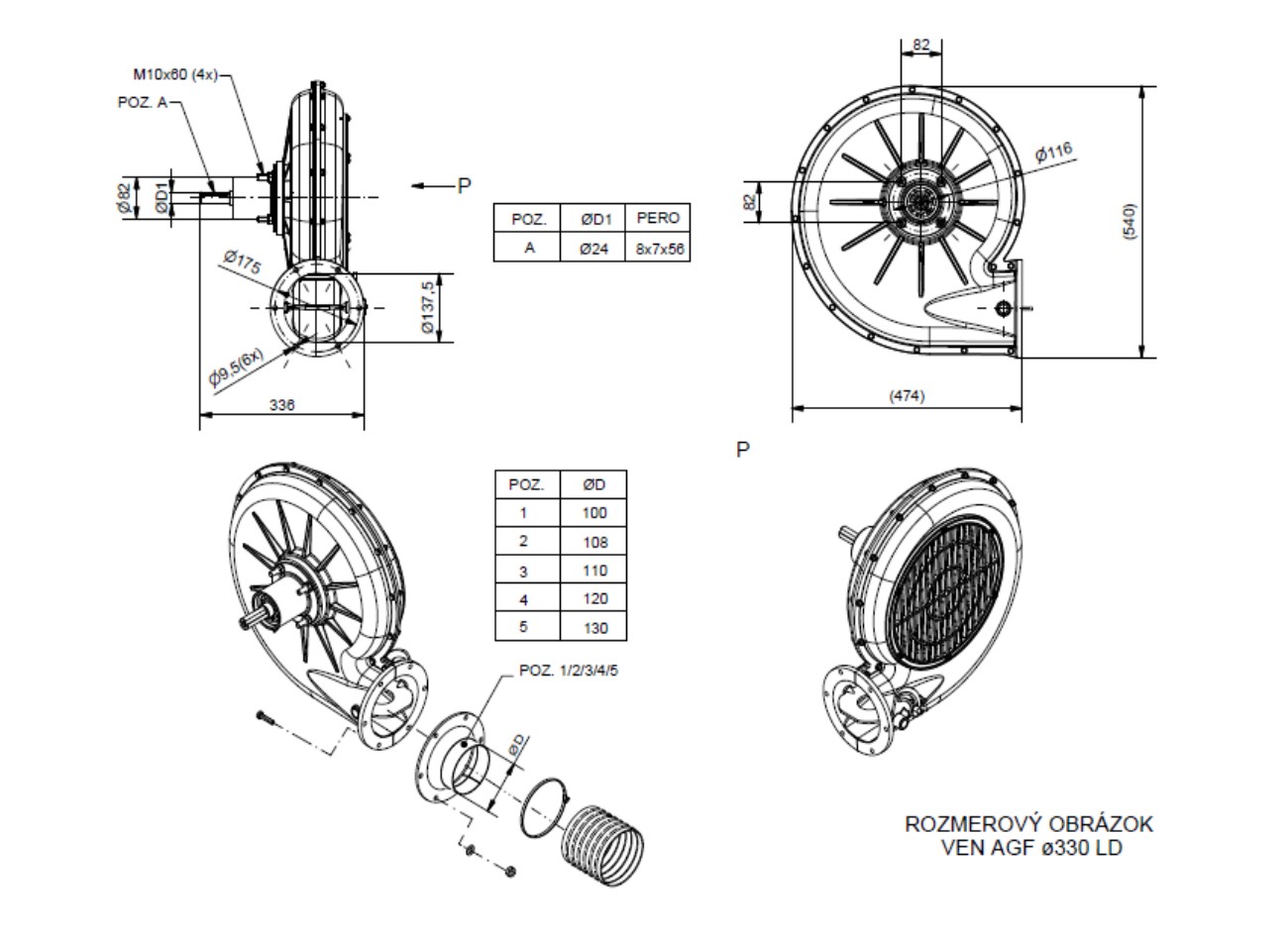

4. K010/26/27 18400021/18400020 A18 Ventilator for rigid pulley /Ventilator for CC
5. K011/37/38 15610400/15610402 Reduction of fan
6. K012/23 18402004 Fan D320 with bearing gearbox
7. K013/9 18400026 Fan D260 with bearing gearbox
8. K020/10 14000260 A19 Sleeve metal
9. K020/14 90051104 Sealing plastic
10. K020/20/K023/20 90048053/12303190 B2/D2 Diffuser
11. K020/21 90048052 A17 Injector
12. K020/23/K021/23 10205931/10205930 A15 Holder of elbow
13. K020/32 90048128 Reduction of hose D100
14. K020/34 90048013 Plug of distributor
15. K020/39/41 10105373/10105371 Clip of hose
16. K020/40 90048004 Sowing reduction
17. K020/47 90048127 A6 Sleeve plastic
18. K021/33/K020/
33/K023/33
90048103/18500500/
17405330
B1/C3/D4 Elbow
19. K022/22 17402860 C2 Elbow D
20. K022/23 17440250 Sealing K
21. K022/24 12303330 Sealing of tube

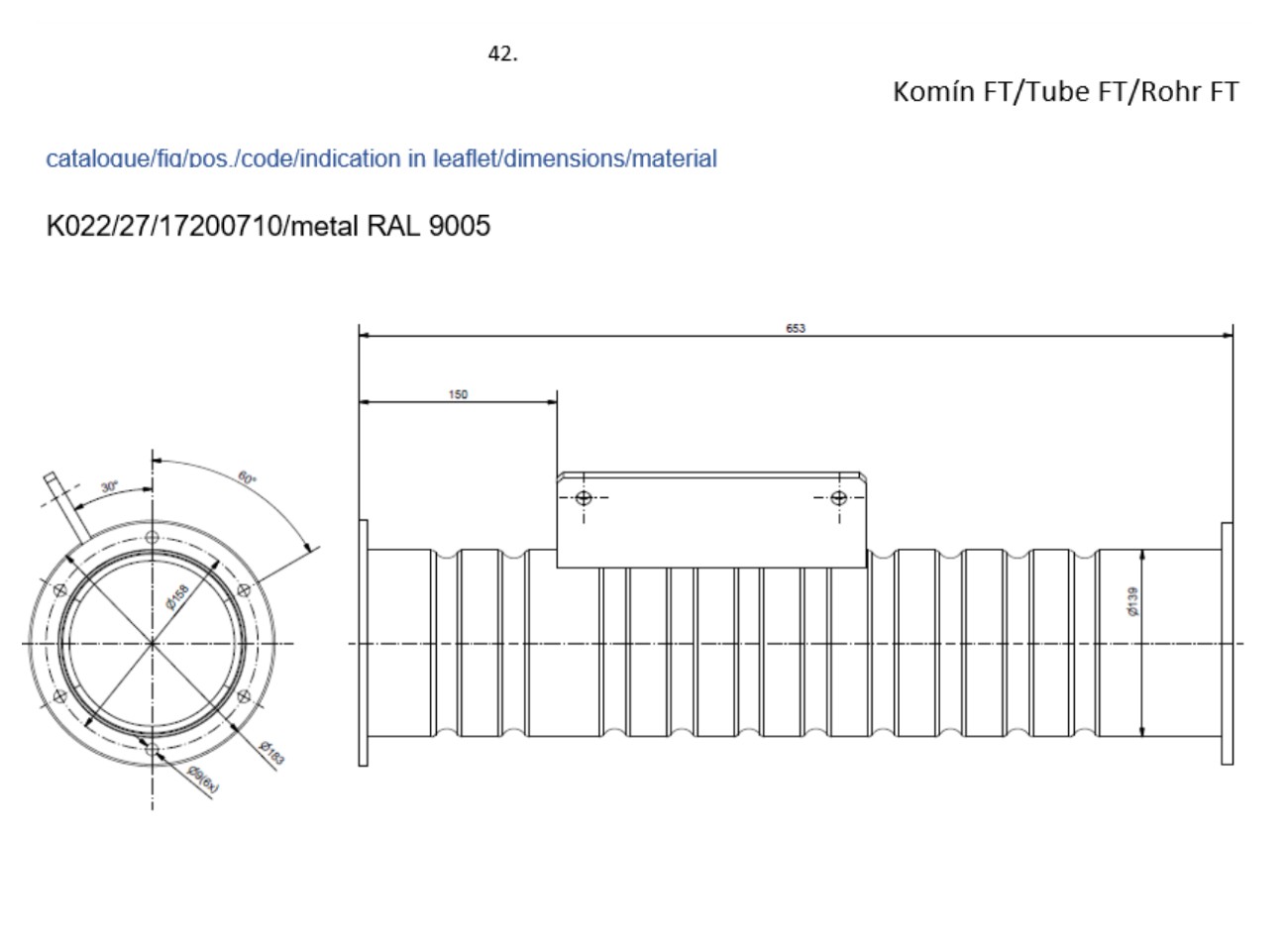

22. K022/25/26 16740210/16740200 C1 Tube fí 139
23. K023/14 12303240 D2 Tube 1
24. K020/15/54 14008231/14008232 B4 Tube fí 110
25. K020/19 10105530 Cover of difusser
26. K030/24 10104750 Bush
27. K040/5 10104700 Pin
28. K040/6 10104760 Bush 1
29. K040/7 10104710 Pan
30. K040/17/18 10104660/10104661 Spring sowing
31. K040/32 90048128 Spring
32. K050/3 10103450 Sealing of tube
33. K050/12 10103470 Bush
34. K050/13 10103481 Plug of hopper
35. K060/K062/K064 13100200/13100300/
13100600
A9/A8/A10 Distributor plastic
36. Distributor metal-plastic
37. K060/K062/K064 13100250/19800710/
19800560
A5 Distributor cover 1/2/
38. K066/22 13101951 A12 Distributor cover 48/24/
39. N090/26 101046661 S-springs
